Type Flow Rate Inlet/Outlet Lamp Dimension Pressure Fitur

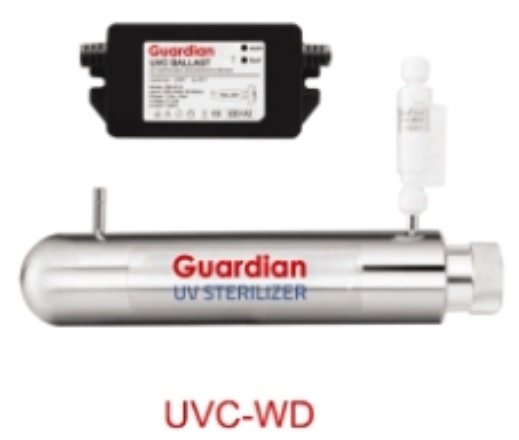

UVC-WD25 1.4 m3/h Male ½" 25 Watt 595 x 63.5 8 bar Flow Sensor
UVC-WD40 2.3 m3/h Male ¾" 40 Watt 595 x 63.5 8 bar Flow Sensor

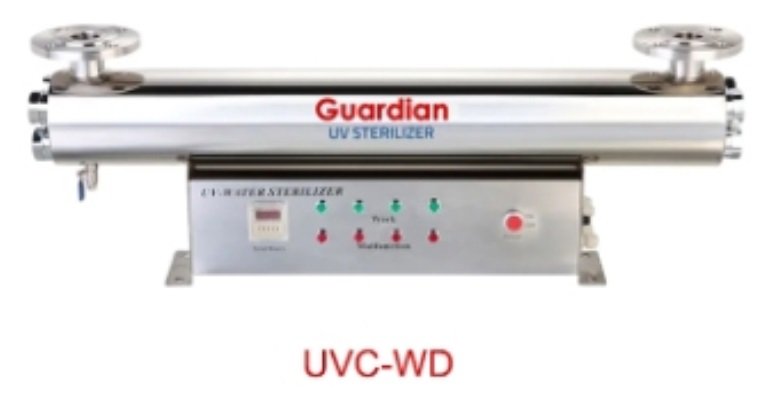

UVC-WD110 5.4 m3/h Male 1" 2 x 55 Watt 950 x 108 8 bar Lamp Indicator
UVC-WD220 10.9 m3/h Male 1½" 4 x 55 Watt 950 x 133 8 bar Lamp Indicator
UVC-WD330 16.3 m3/h Flange 2" 6 x 55 Watt 950 x 168 8 bar Lamp Indicator
UVC-WD440 21.8 m3/h Flange 3" 8 x 55 Watt 950 x 219 8 bar Lamp Indicator
UVC-WD660 32.7 m3/h Flange 4" 12 x 55 Watt 950 x 275 8 bar Lamp Indicator
UVC-HO2 14 m3/h Flange 2½" 2 x 120 Watt 1212 x 133 8 bar Lamp Indicator
UVC-HO4 35 m3/h Flange 4" 4 x 120 Watt 1212 x 168 8 bar Lamp Indicator
UVC-HO6 69 m3/h Flange 5" 6 x 120 Watt 1212 x 219 8 bar Lamp Indicator
UVC-HA3 105 m3/h Flange 6" 3 x 320 Watt 1618 x 219 8 bar Lamp Indicator
UVC-HA5 168 m3/h Flange 6" 5 x 320 Watt 1618 x 219 8 bar Lamp Indicator
UVC-HA7 298 m3/h Flange 8" 7 x 320 Watt 1618 x 274 8 bar Lamp Indicator
UVC-HA9 459 m3/h Flange 10" 9 x 320 Watt 1618 x 325 8 bar Lamp Indicator

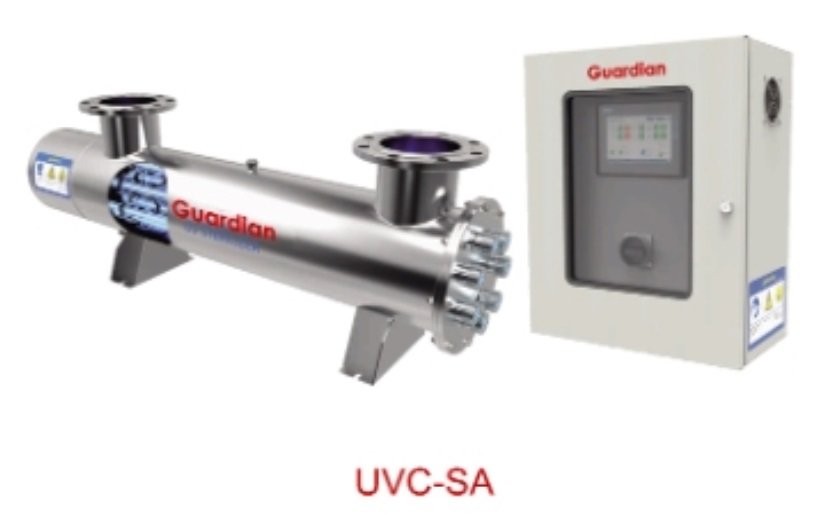

UVC-SA3 35 m3/h Flange 3" 3 x 120 Watt 1470 x 168 8 bar Automatic Wipe
UVC-SA4 45 m3/h Flange 4" 4 x 120 Watt 1470 x 219 8 bar Automatic Wipe
UVC-SA5 55 m3/h Flange 5" 5 x 120 Watt 1470 x 219 8 bar Automatic Wipe
UVC-SA6 70 m3/h Flange 6" 6 x 120 Watt 1470 x 274 8 bar Automatic Wipe
UVC-SA9 120 m3/h Flange 8" 9 x 120 Watt 1470 x 325 8 bar Automatic Wipe
